Designed and built in Denmark, COMET portable X-ray generators are fitted with a high-quality metal ceramic X-ray tube and a robust composite casing to protect all vital parts. They are assembled with the utmost care - making them reliable, long-lasting, and a sound investment.
The panoramic 38˚ x 360˚ X-ray beam makes the PXS EVO a perfect choice for weld seam inspection of cylindrical vessels and pipes. The PXS EVO 200P & 300 P features a combination of up to 300 kV and 750 W constant potential X-ray power for high penetration - making it well suited for a broad range of inspection jobs where reliability and performance are required.
The combination of the new PXS EVO tube heads and CONTROL EVO is the key to a significantly improved workflow. The systems meet the IP65 standard, making them fully operational in dusty and wet conditions. A broad temperature range from -20° C to +50° C makes the EVO systems reliable and ensures smooth operation even in extreme environments.
The PXS EVO 200P & 300P tube heads are designed for inline inspections of pipes and vessels when integrated with JME Pipeline Crawlers.

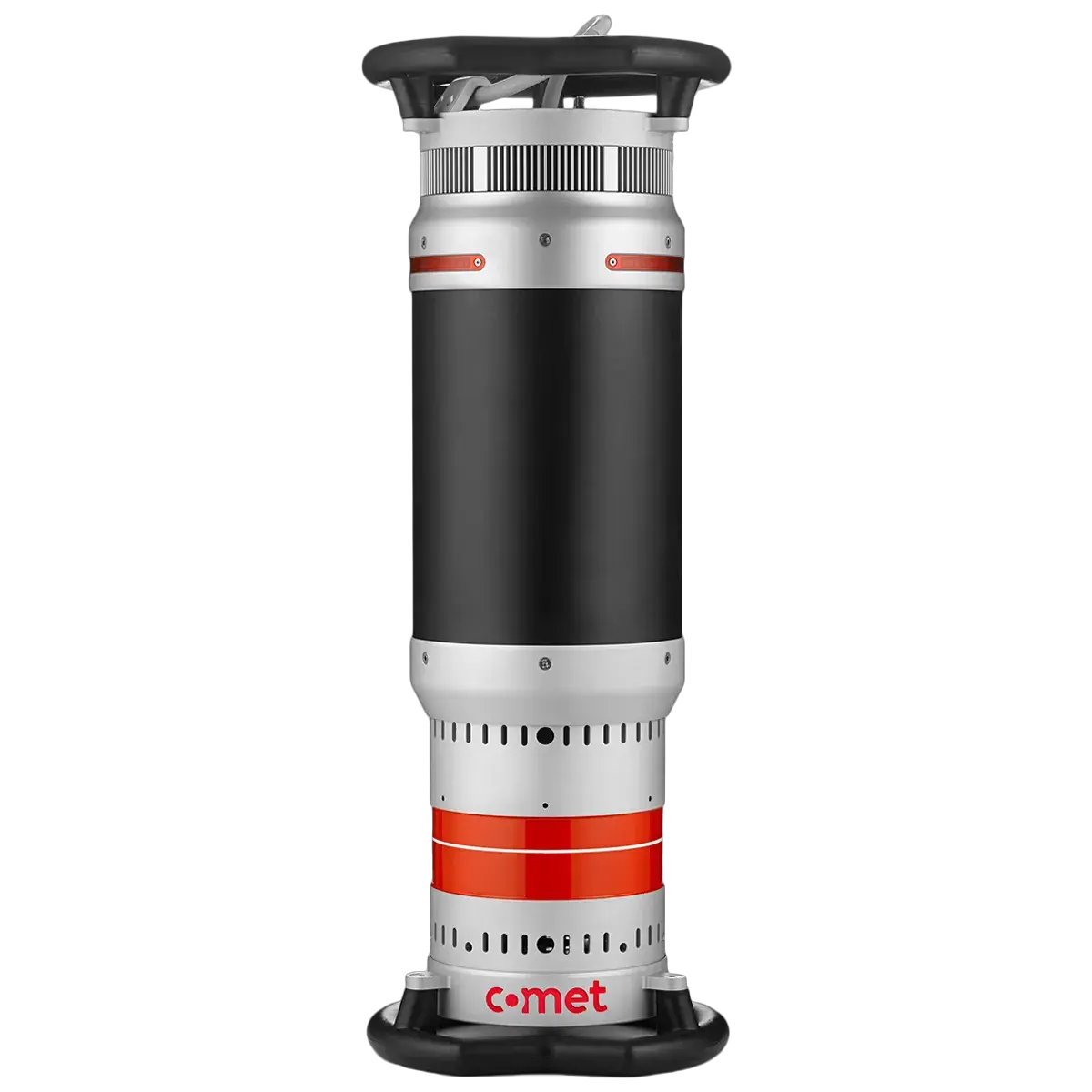

COMET's PXS EVO 300P features a combination of 300 kV and 750 W constant potential X-ray power with for high penetration - making it well suited for all heavy-duty inspection jobs where ultimate performance is required.
The ergonomic design and the low weight of 36 kg make the PXS EVO 300P easy to handle and re-position. The intuitive interface allows for a smarter workflow. The re-engineered three-part lead belt is easy to mount and has as standard a 38˚ x 60˚ slit option allowing for directional use if required.

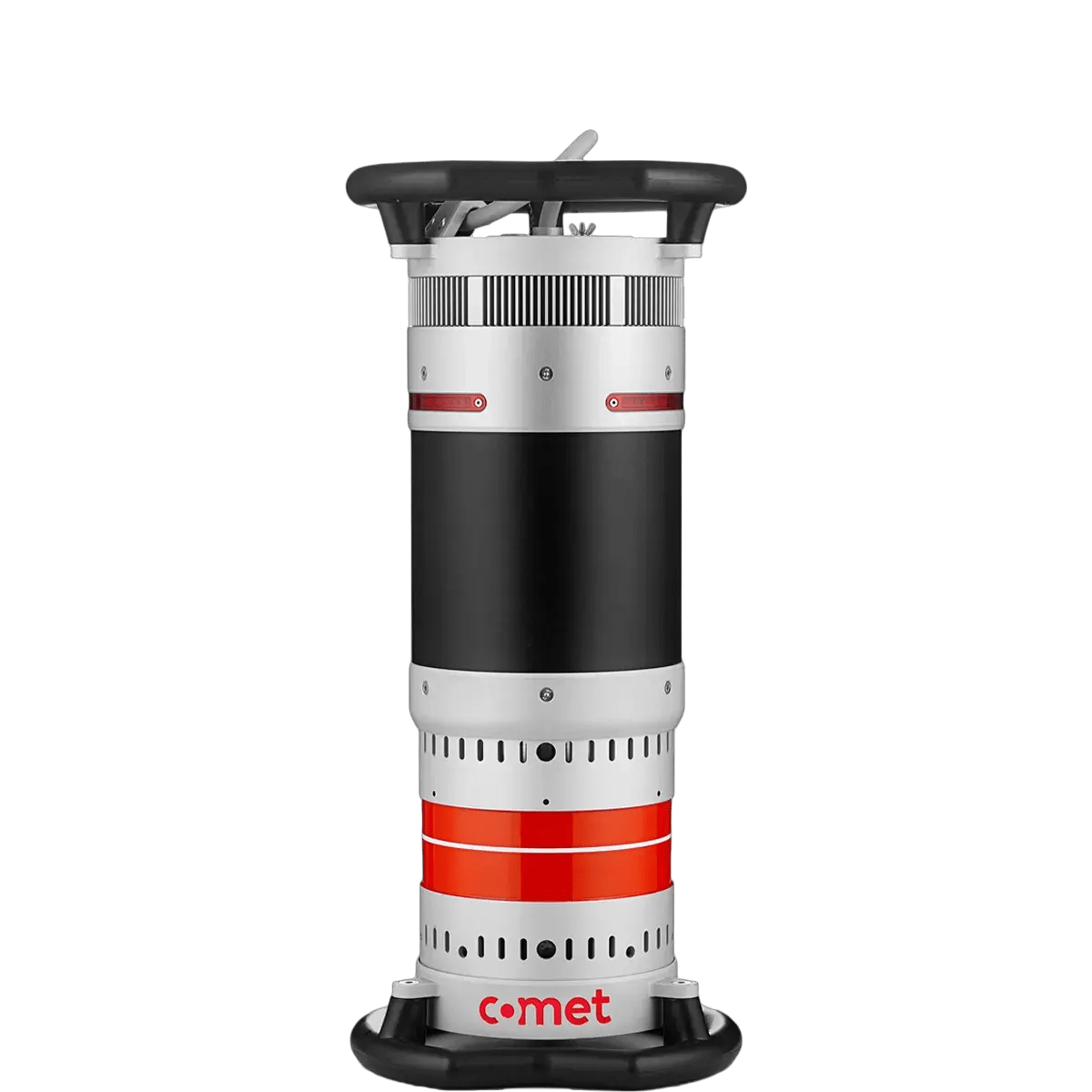

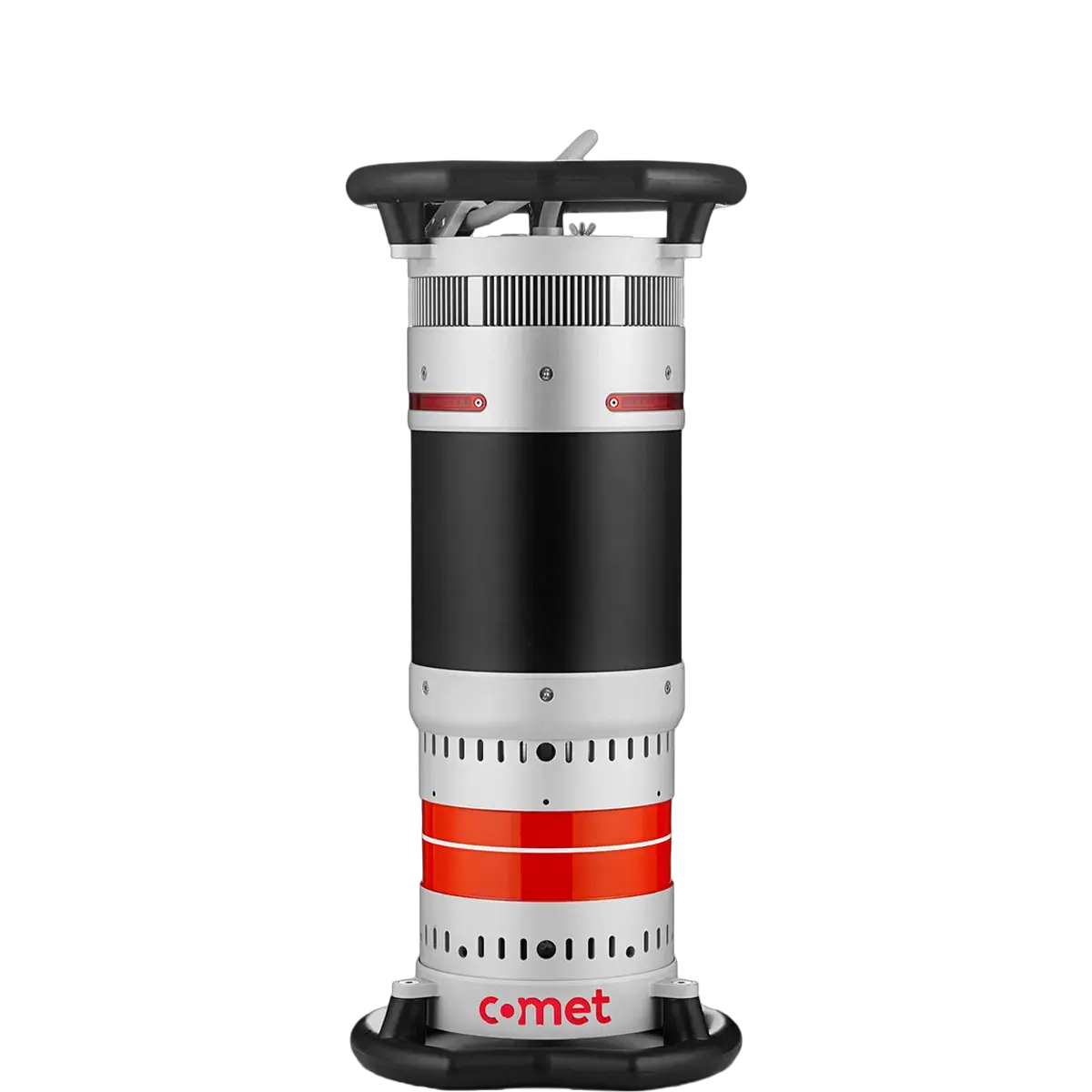

COMET's PXS EVO 200P X-Ray Generator features a combination of 30 - 200 kV and 750 W constant potential X-ray power for high penetration - making it well suited for a broad range of inspection jobs where reliability and performance are required.
The ergonomic design and the compact size make the PXS EVO 200P easy to handle and re-position. The intuitive interface allows for a smarter workflow. The re-engineered three-part lead belt is easy to mount and has as standard a 38˚ x 60˚ slit option allowing for directional use if required.
Designed and built in Denmark, COMET's CONTROL EVO is based on state-of-the-art technology. The unit features an exposure calculator and has an intuitive interface with a wide range of advanced functionalities – equaling a smarter workflow.
The unit is fitted with a high-quality die-casted aluminum chassis protecting all vital parts. It meets the IP66 standard, making the CONTROL EVO fully operational in dusty and wet conditions. All information is clearly displayed on the 6.5 inches high contrast color screen. The unit features an exposure calculator and has an intuitive interface with a wide range of advanced functionalities – equalling a smarter workflow.
The CONTROL EVO is backward compatible with the Y.SMART and Y.XPO portable X-ray systems. It has an Ethernet interface allowing for remote diagnostics and software updates. The USB interface facilitates control of the system via a USB-to-Serial converter, saving diagnostics reports, and can also be used for software updates in the field. It even has Bluetooth™ for future applications. All of these make the EVO system smart and future-proof.

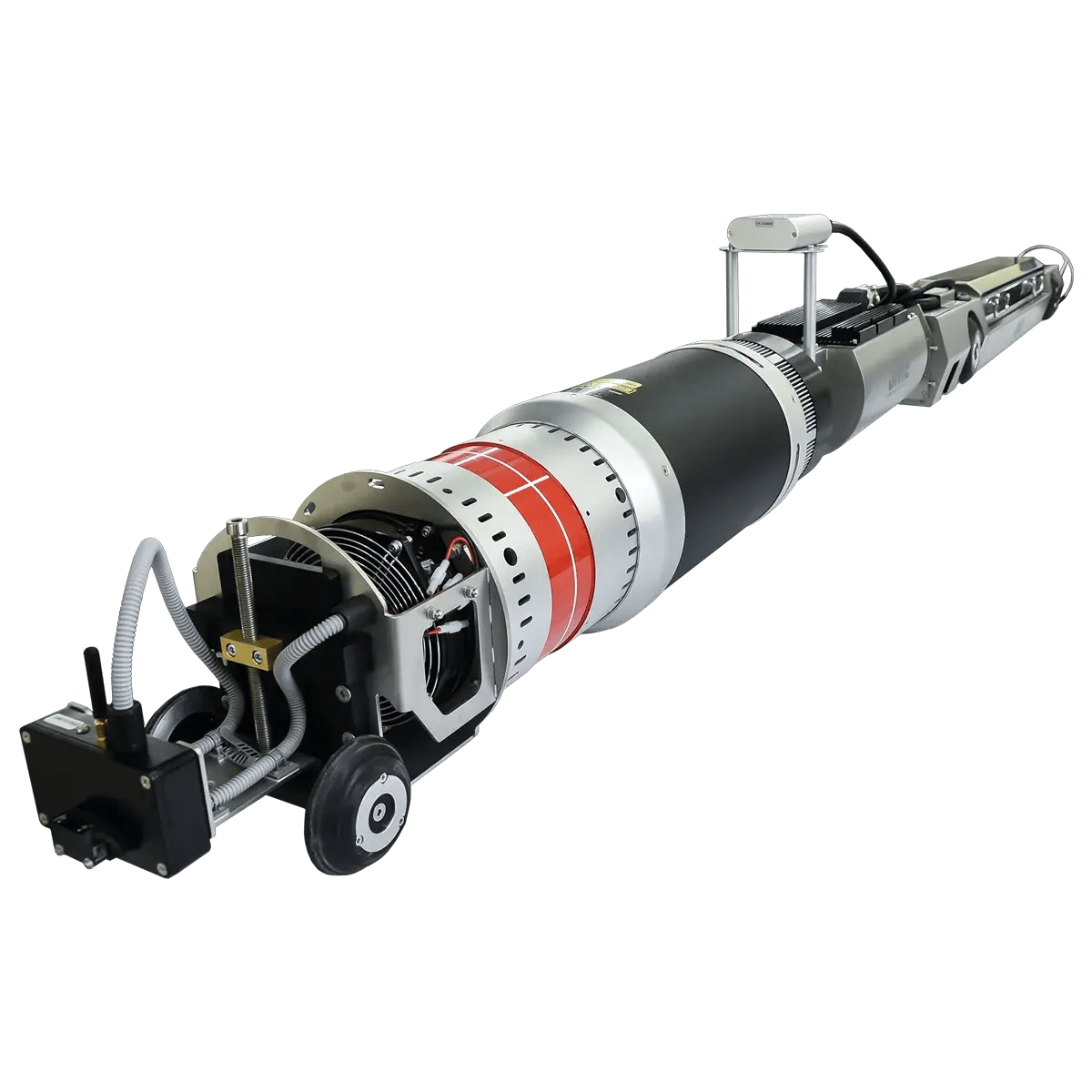

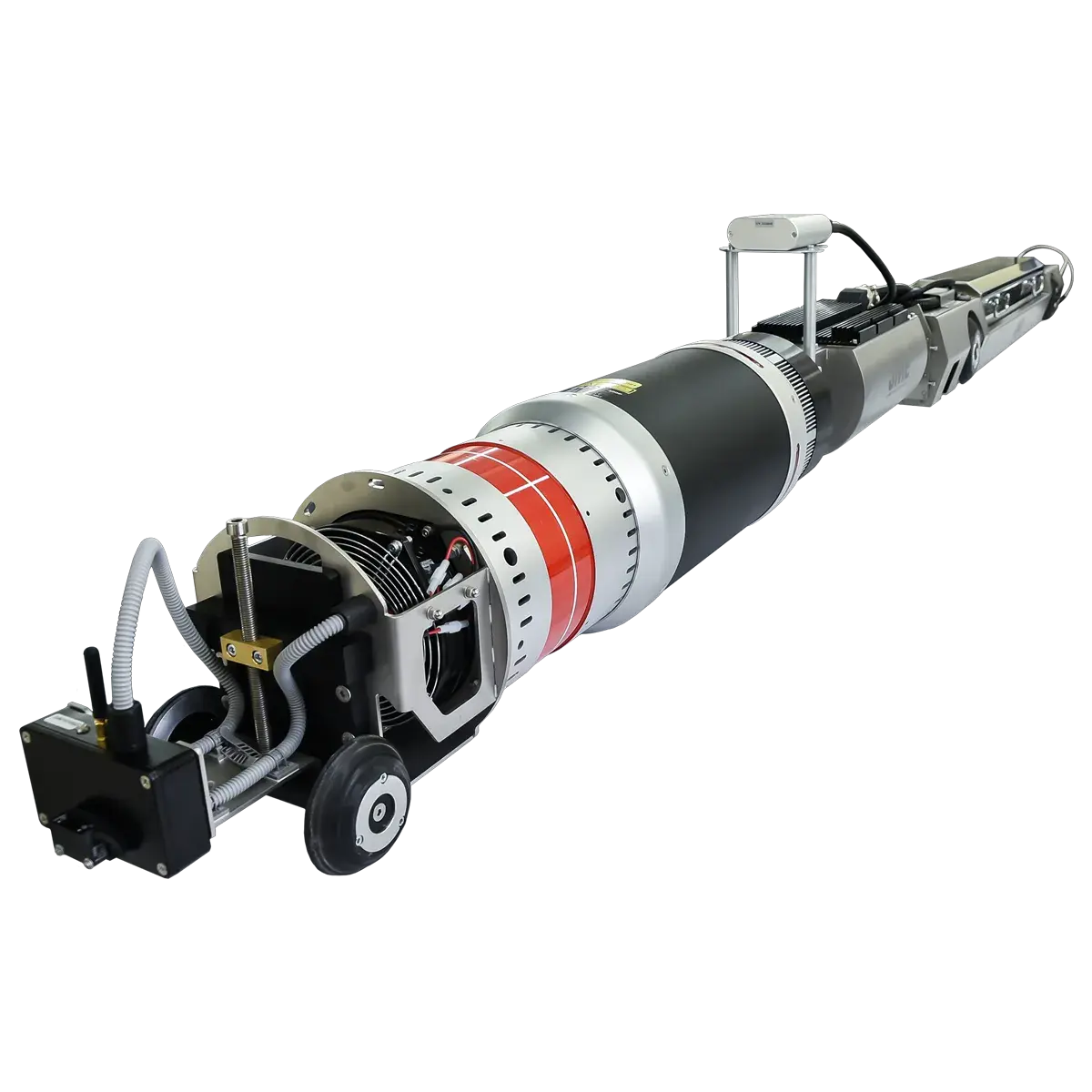

COMET's PXS EVO 200P & 300P crawler package features 750 W constant potential X-ray power for high penetration - making it well suited for all heavy-duty inspection jobs where ultimate performance is required.
The PXS EVO 200P & 300P tube heads are designed for inline inspections of pipes and vessels when integrated with JME Pipeline Crawlers.
The package includes a DC/DC converter, controller board, support and documentation, ensuring complete integration. The advanced controller board takes care of the X-ray operations and is fully controlled through the RS232 interface, which also supports the relay of operational and diagnostic information.
The PXS EVO system is based on high efficient switch-mode technology, which minimizes energy consumption and thus extends the endurance of the pipeline crawler’s battery pack.
Contact us to learn how Comet's Panoramic X-ray Generators can address your unique application needs. We will identify the x-ray generator, crawler, and dosimeter for your needs and provide you with a quote.
Our goal is to provide you with an outstanding ownership experience. We're available to help you address problems in the field, make repairs, and replace components and spare parts.
